| Name | Units | ABLD120 | ABLD150 |
| Max.product volume | L | 300 | 1000-5000 |
| Screw diameter | MM | 120 | 120×2 |
| Screw drive power | KW | 132 | 132×2 |
| Screw heating capacity | KW | 36 | 36×2 |
| Output of HDPE | KG/H | 350 | 620-840 |
| Oil pump drive power | KW | 37 | 37 |
| Clamping force | KN | 900 | 1800 |
| Max.size of mold | MM | 1200×1700 | 1600×2200 |
| Material storage | L | 24-35 | 40-100 |
| Template size | MM | 1200×1600 | 1600×2000 |
| Mold stroke | MM | 880-1700 | 800-2500 |
| Max.die diameter | MM | 700 | 1000 |
| Die heating power | KW | 36 | 64 |
| Size of machine | L×W×H | 7.5×3.5×5.5 | 11.5×7.5×8 |
| Weight of machine | TON | 36 | 72 |
DAWSON MACHINERY & MOULD GROUP

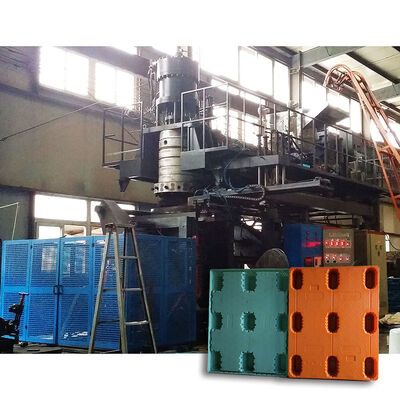

Accumulation Type Blow Molding Machine ABLD150

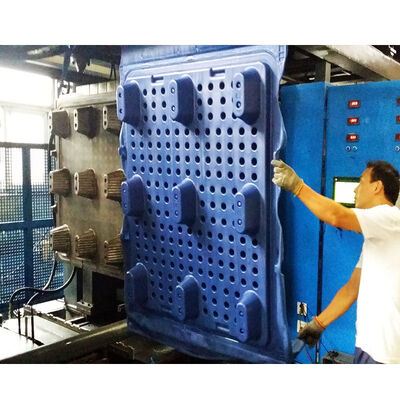

suitable for 300-5000L plastic drum and barrel, children table or desk board, barriers, floaters, pallets and indoor toys, etc.
